Train Horn Terminology Explained: Trumpets, Chimes, Solenoids, Duty Cycle, and dB Ratings

Every train horn spec sheet leans on the same handful of terms — trumpets, chimes, solenoids, duty cycle, decibels — and most of them are never explained anywhere. This glossary breaks down every word you'll actually run into while shopping for or troubleshooting a battery-powered train horn, in plain English and with real numbers.

Trumpets, Chimes, and Chords: The Parts That Make the Sound

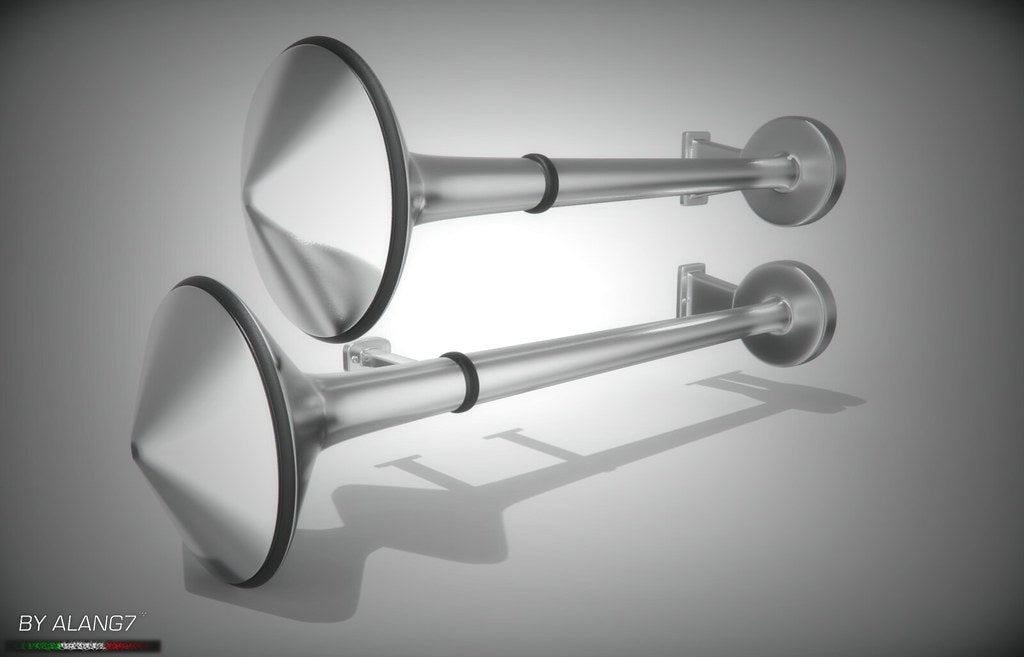

Trumpet. The flared metal or ABS bell that shapes and projects the sound. The trumpet doesn't create the tone — it amplifies it and throws it forward. Length sets pitch: a longer trumpet produces a lower, deeper note, while a shorter one plays higher. That's why a quad-trumpet horn has four bells of different lengths sticking out at different depths.

Chime. One voice, or one note. The horn industry counts horns by chimes: a "5-chime" horn has five trumpets, each tuned to a different note. The classic Nathan AirChime K5LA — the locomotive horn most Americans picture when they hear "train horn" — is a five-chime design tuned to play a B-major-sixth chord. On battery-powered horns, the same idea scales down: a Dual has two chimes, a Quad has four.

Chord. Several notes sounding at once. This is the single biggest reason a train horn sounds nothing like a car horn: a stock car horn plays one or two notes, while a train horn stacks multiple tuned trumpets into a chord that reads as "freight train" from a quarter mile away. Our breakdown of what a train horn gun is and how it works walks through this layout piece by piece.

Diaphragm. A thin metal disc seated in the base of each trumpet. Compressed air rushing past forces it to vibrate hundreds of times per second, and that vibration — amplified by the trumpet — is the sound you hear. When a diaphragm wears out or gets contaminated, the blast turns weak and squeaky, which is why diaphragm material and moisture protection matter for horn lifespan.

Trumpets are also the main upgrade path for loudness and tone. Longer, wider bells move more air and dig into lower frequencies — that's the whole idea behind our Extreme Series Quad Trumpets Set, which swaps standard bells for longer low-tone trumpets.

The Air Side: Compressor, PSI, CFM, Tank, and Solenoid

Air compressor. The motor-driven piston pump that squeezes air to high pressure. In a traditional vehicle install it fills a tank; in a battery-powered horn, a compact onboard compressor feeds the trumpets directly, powered by a tool battery instead of your truck's 12V wiring.

PSI (pounds per square inch). The pressure of the stored or delivered air. More PSI means more force behind the air charge that hits the diaphragms. Battery horns are engineered as a matched system — compressor, diaphragms, and trumpets tuned together — so there's no tank pressure for you to manage.

CFM (cubic feet per minute). Airflow volume over time. A 1 CFM compressor moves one cubic foot of air — about 7.5 gallons — per minute, and output drops as system pressure climbs. In air-kit land, CFM decides how fast your tank refills between blasts.

Air tank. The reservoir that stores compressed air in a traditional train horn kit. Bigger tanks allow longer blasts but take longer to refill. Battery-powered horns skip the tank entirely — that's the main reason they install in seconds instead of hours.

Solenoid (solenoid valve). The electrically triggered air valve in a tank-based kit. Energize the coil and a magnetic plunger lifts, releasing tank air to the horns; cut power and the valve snaps shut. It's the component that turns a button press into a blast. Battery horns replace this plumbing with a simple trigger switch on the compressor circuit — one less part to wire and one less part to fail.

Duty Cycle: Why Horns and Compressors Need Rest

Duty cycle is the ratio of a compressor's run time to the rest time it needs, usually written as a percentage. A 33% duty cycle unit can run one minute out of three; a 100% duty cycle compressor can run continuously without overheating. The limiting factor is heat — piston compressors build it fast, and running past the rated cycle cooks seals and motors.

On a battery-powered train horn this shows up as a practical rule: fire long blasts back to back and the compressor warms up, and some units will need a short cooldown before full-power blasts return. If your horn seems to lose steam on repeated honks, that's not a defect — it's thermal protection doing its job. We covered the details in why a train horn cuts out on repeated blasts.

Decibels Decoded: dB, dB(A), SPL, and the 6 dB Rule

Decibel (dB). A logarithmic measure of sound pressure — the scale compresses huge pressure differences into manageable numbers. Because it's logarithmic, small-looking jumps are big in real life: an increase of about 10 dB is perceived by the human ear as roughly twice as loud.

SPL (sound pressure level). The actual measured quantity behind a dB rating — the pressure the sound wave exerts, referenced against the threshold of human hearing and read with a calibrated meter.

dB(A). A decibel reading filtered through "A-weighting," which discounts very low and very high frequencies to match how human ears actually perceive loudness. Most regulations — vehicle codes, workplace noise rules — are written in dB(A).

The 6 dB rule. In open air, sound pressure drops about 6 dB every time you double your distance from the source. A horn rated 150 dB at 1 meter reads roughly 144 dB at 2 meters and about 138 dB at 4 meters. This is why a dB rating means nothing without a measurement distance, and why so many sketchy listings quote inflated numbers with no distance at all.

Two anchor points put horn ratings in context. Federal rules require a real locomotive horn to produce between 96 and 110 dB(A) measured 100 feet in front of the locomotive (49 CFR 229.129). And on the safety side, OSHA's occupational noise standard caps continuous workplace exposure at 115 dB(A) and sets a 140 dB ceiling for impulse noise. A 150 dB-class horn clears both numbers at close range — point the trumpets away from people and never fire one next to an unprotected ear.

Tiers, Platforms, and Triggers: Battery-Horn Shopping Terms

Sound tier. How battery train horns are classed by trumpet count and output: Dual models (two trumpets) reach about 130 dB, Quad models (four trumpets) about 140 dB, and Extreme and Boss Series models push past 150 dB with upgraded trumpets and airflow. The full comparison lives in our Dual vs Quad vs Extreme tier guide.

Battery platform. The brand-specific battery system a horn's base is built to accept — Milwaukee® M18™, DeWalt® 20V MAX™, Ryobi® ONE+™, Makita® LXT®, and so on. The platform defines the physical slide-on interface and voltage; any pack from that platform powers the horn. The horn itself is a BossHorn product — the brand name only tells you which battery it runs on.

Horn gun. The handheld battery-horn format: trumpets, compressor, and battery dock in one unit you can grab, aim, and fire — no mounting or wiring required.

Wireless remote. A key-fob-style radio transmitter that fires the horn from a distance. Range is quoted line-of-sight; our standard remote covers 300 ft and the Long-Range Remote reaches up to 2,000 ft.

Put the vocabulary together and a product name decodes itself: the Extreme Series Train Horn for Milwaukee® 18v Battery is a top-tier quad-chime horn gun that runs on any Milwaukee® M18™ pack, pushes past 150 dB, and fires by trigger or wireless remote.

FAQ

What's the difference between a trumpet and a chime?

A trumpet is the physical part — the flared bell. A chime is the note that trumpet plays. Since each trumpet is tuned to one note, the counts usually match: a four-trumpet horn is a four-chime horn playing a four-note chord.

Does more PSI mean a louder horn?

Only within the horn's design range. Loudness comes from the whole system — air pressure, airflow, diaphragm, and trumpet size working together. Battery horns are factory-matched, so there's no pressure to tune; on air kits, running outside the horn's rated pressure changes pitch and can damage diaphragms rather than adding useful volume.

What does a 100% duty cycle mean?

The compressor can run continuously at its rated pressure without a mandatory rest period. Lower percentages mean the unit must rest — a 50% duty cycle compressor needs as much rest time as run time to avoid overheating.

Why does my phone measure a lower dB number than the horn's rating?

Two reasons: distance and hardware. Ratings are taken close to the horn, and sound drops about 6 dB per doubling of distance, so even a few steps back cuts the number fast. On top of that, phone microphones aren't calibrated meters and overload well below train-horn levels, so the reading clips low.
