A train horn gun is a self-contained, battery-powered air horn: an electric compressor, a set of tuned trumpets, and a dock that accepts the same 18V or 20V battery that already runs your drill. There is no air tank to fill and no wiring to run — you click a battery in, pull the trigger, and get a locomotive-style blast anywhere you can carry it.
What exactly is a train horn gun?
Traditional truck train horns are permanent installations. A kit bolts an air compressor and a storage tank into your bed or under the frame, runs air line to a set of trumpets, and wires a solenoid valve into the cab. The result sounds great, but it costs an afternoon or a full weekend of installation before the first blast, and the horn is married to one vehicle forever.
A train horn gun collapses that whole system into one portable unit with a grip and a trigger — that is where the "gun" in the name comes from. There is nothing weapon-like about it beyond the way you hold it. The compressor, the valve, the trumpets, and the power source all travel together, so the same horn works from a truck bed today, a boat this weekend, and a tailgate lot in the fall. Most models fire two ways: a trigger press on the unit itself, or a wireless key-fob remote from a distance.
The four parts that do the work
Strip the housing off any battery train horn and you find the same four subsystems. Each one has a single job:
- Battery dock. Molded rails accept one specific tool-battery platform — Milwaukee M18, DeWalt 20V MAX, Ryobi ONE+, Makita LXT, and a dozen others each get their own dock. The pack is the horn's only power source; there is no internal battery to babysit.
- Electric compressor. A motor-driven compressor pulls in ambient air and pressurizes it on demand. This is what separates a train horn gun from an aerosol boat horn: it never needs a refill, because the air it fires is the air around you.
- Valve and diaphragm. When you pull the trigger, pressurized air rushes past a flexible diaphragm inside the horn body, snapping it back and forth hundreds of times per second. That vibration — not the air itself — is the actual sound source.

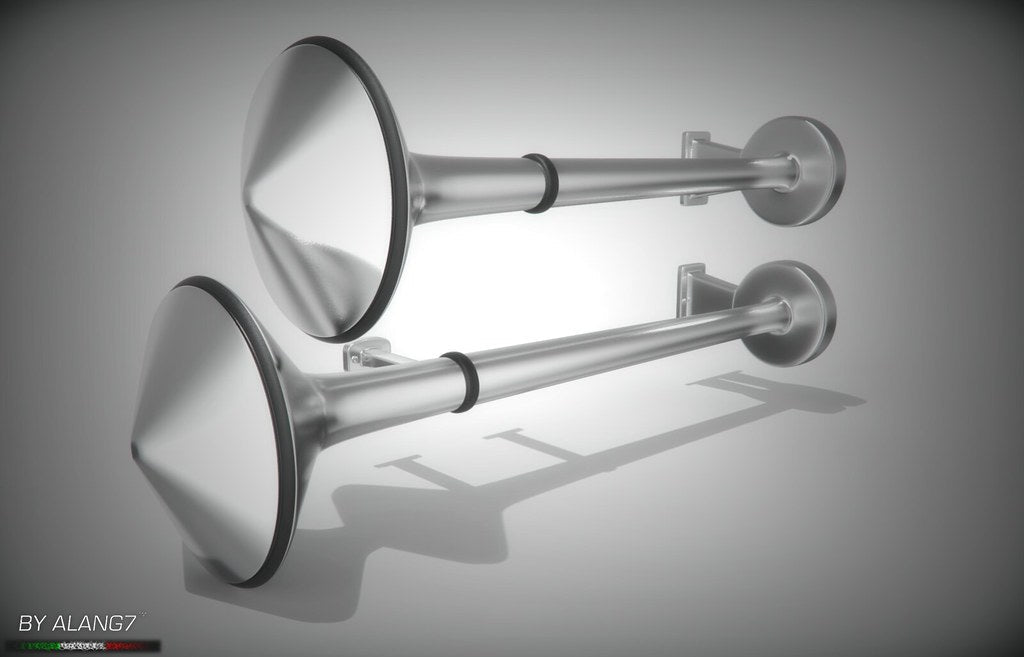

- Trumpets. The flared bells do the amplifying. A horn's flare works as an acoustic transformer: it couples the diaphragm's vibration to the open air far more efficiently than a bare diaphragm could manage, which is why trumpet shape matters as much as air pressure. Longer trumpets produce lower, deeper notes; shorter trumpets sit higher in pitch.
From trigger pull to blast, step by step
The whole sequence takes a fraction of a second:
- 1. Trigger. You squeeze the trigger on the grip, or press the button on a paired wireless remote. Either one closes the same circuit.
- 2. Compressor spins up. The battery dumps current into the compressor motor, which immediately starts forcing pressurized air toward the horn bodies.
- 3. The diaphragm vibrates. Air rushing past each diaphragm makes it oscillate, chopping the airflow into rapid pressure pulses — sound waves.
- 4. The trumpets amplify and tune. Each pulse train travels down a trumpet, which shapes the note and projects it forward.
- 5. Release, and it stops. Let go of the trigger and the airflow stops instantly. There is no tank slowly bleeding down.
The signature "train" sound comes from firing several trumpets of different lengths at once. Each length produces a different pitch, and together they form a chord — the same principle a real locomotive horn uses. That is why trumpet count is the main spec separating models: two trumpets make a strong two-note blast, while four or five make the fuller, angrier chord most buyers picture. We compared the tiers in detail in Dual vs Quad vs Extreme: decibel tiers and trumpet count.
Why a power-tool battery runs the whole thing
A compressor is a high-draw motor, and high-draw motors are exactly what cordless tool packs are built for. An 18V pack and a "20V MAX" pack are electrically the same thing: five lithium-ion cells with a nominal 3.6 volts each, which multiplies out to 18 volts nominal. The 20V figure is simply the peak reading fresh off the charger, before the pack settles into its working voltage. So whichever badge is on your batteries, they deliver the same class of power — more than enough to spin a horn compressor hard.
Running on a tool pack has three practical payoffs. First, zero installation: there is nothing to wire, plumb, or mount, which is the entire pitch compared to a tank-and-compressor kit. Second, you already own the fuel — if there is a drill in your garage, the expensive part of the system is sitting on your workbench charged. Third, swappable runtime: when a pack runs down, you click on another one, the same way you would mid-job with an impact driver.
How loud is a train horn gun, really?
Battery train horns come in tiers set mostly by trumpet count and compressor output. Dual models with two trumpets reach around 130 dB. Quad models with four trumpets reach around 140 dB. At the top, premium builds like the Extreme Series Train Horn for Milwaukee® 18v Battery push past 150 dB with upgraded trumpets and a stronger compressor.
For context, federal regulation 49 CFR 229.129 requires a real locomotive horn to produce between 96 and 110 dB(A) — measured 100 feet in front of the locomotive. That distance is the detail most spec sheets skip: sound from a point source drops about 6 dB every time you double your distance from it, per OSHA's technical manual on noise. A handheld horn rated up close and a locomotive horn rated at 100 feet are being measured on completely different terms, so compare ratings only when you know the distance behind them. We dug into what those numbers feel like in the real world in How loud is 150 dB, really?
Those levels also demand respect. NIOSH's recommended exposure limit is 85 dB(A) averaged over an eight-hour day, and every 3 dB increase cuts the safe exposure time in half — at 100 dB(A), NIOSH recommends under 15 minutes per day. A train horn blast is far above that. Point the trumpets away from people, keep blasts short, and treat it like the industrial-strength signaling tool it is.
FAQ
Does a train horn gun need CO2 cartridges or air refills?
No. The compressor makes its own pressurized air from the atmosphere every time you pull the trigger. That is the core difference from aerosol can horns, which go quiet forever once the canister empties.
Do I have to buy a special battery?
No. The dock is molded for the tool-battery platform you already own, so the pack that runs your drill runs the horn. Batteries and chargers are sold as optional add-ons for buyers starting from zero, but they are not required.
How far away can I trigger it?
Standard wireless remotes work like a key fob at short range, and long-range remotes extend that reach up to 2,000 feet — useful for race starts, farm signaling, or firing a horn mounted in the truck bed while you stand at the tailgate party.
Is a train horn gun legal?
It depends on where and how you use it. On private property, off-road, at events, and for marine or emergency signaling, a portable horn is generally in bounds. Using any train-style horn on public roads is regulated state by state, so check your local vehicle code before making it a traffic horn.
