If your truck already wears a roof platform or a bed rack, you own the best horn mount on the vehicle and probably have not used it yet. A battery-powered train horn is a one-piece, 4-pound unit with no compressor, tank, or air line, so it bolts to a rack the same way a shovel mount or a light pod does, and you fire it from the driver's seat with a key fob.
Why a rack beats every other spot on an overland rig
Three things make a horn loud in the real world: height, open air in front of the bells, and no sheet metal wrapped around it. A rack gives you all three. Up top, the trumpets clear the hood, the bed walls, and the traffic ahead. That is the opposite of the usual air-horn install, where the trumpets end up behind a bumper because that is where the air line could reach.
The battery horn changes the math because there is no air line. The Extreme Series Train Horn for Milwaukee® 18v Battery is a fully assembled unit with four powder-coated aluminum trumpets, a built-in compressor, and a 433 MHz receiver, weighing 4 pounds without the pack. It measures 14 by 6 by 12 inches, runs on any Milwaukee® M18™ battery from 2.0 to 12.0Ah, and ships with a 160-foot remote. Nothing to route, nothing to wire, nothing to leak. You attach one object to the rack, click a pack in, and you are done in about 15 minutes.
Roof rack or bed rack: pick the height that fits your life
Both work. The difference is how high the horn rides, which drives garage clearance, wind, and remote reach.
| Rack type | Where the horn sits | What it means |
|---|---|---|
| Roof platform (Front Runner Slimline II, Rhino-Rack Pioneer) | Above the cab roof | Loudest forward projection, most wind exposure, adds to overall height |

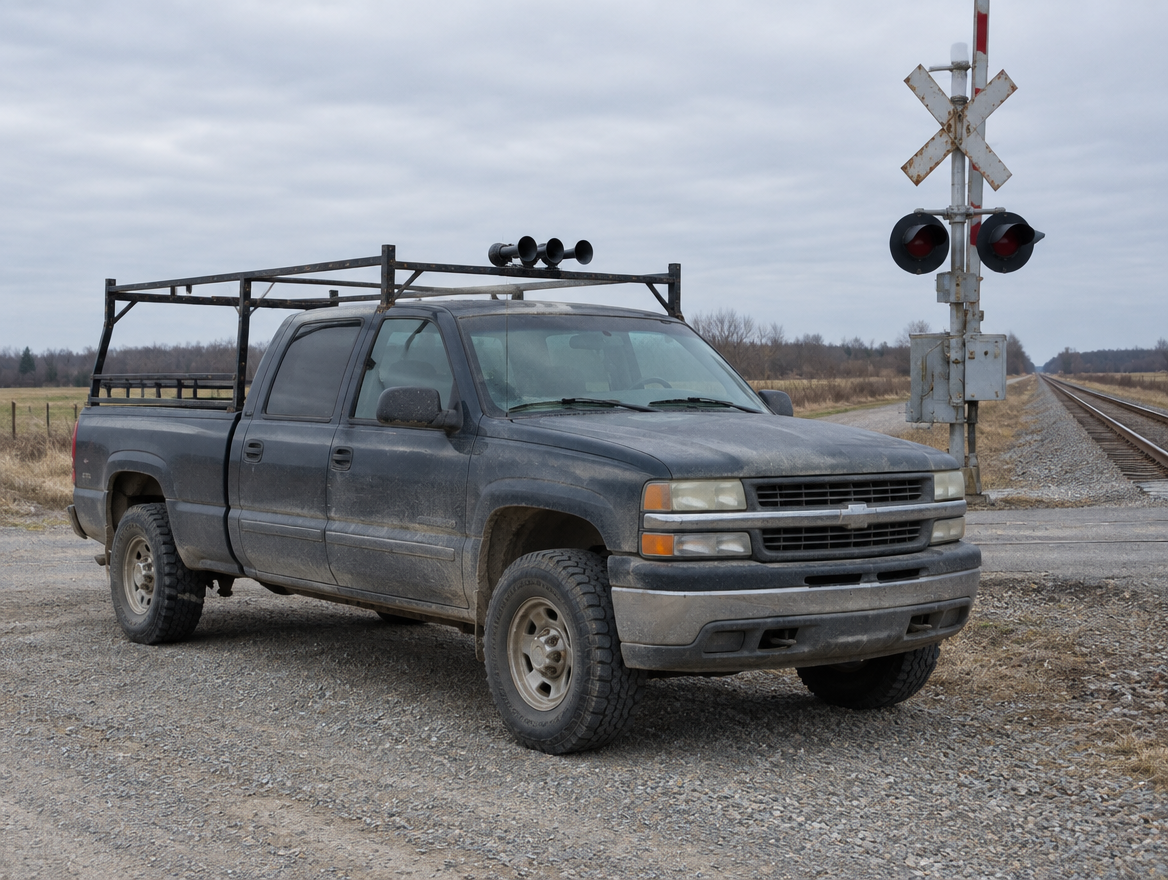

| Adjustable bed rack (Yakima OverHaul HD) | 19 to 30 inches above the bed rails | Set it at cab height and the cab shields the horn from head-on wind |
| Cab-height bed rack (Leitner ACS Forged) | 23 inches above the rails | Horn rides just behind the cab, out of the airstream, reachable from the bed |
Height is the first thing to check. Most full-size pickups already stand roughly 75 to 80 inches tall, and a common parking-garage clearance is 7 feet, or 84 inches. A roof rack eats most of that margin, so a horn standing above the slats can be the piece that catches the pipe. A bed rack at or below cab height adds nothing, which is why we recommend it for trucks that park in garages. On a roof platform, mount the horn low and flat between the slats, not on a riser.
Weight is a non-issue on any real rack. The horn is 4 pounds plus a battery. The OverHaul HD is rated for 500 pounds on road and 300 off road, the ACS Forged for 800 on road and 400 off road, and the Slimline II carries a 660-pound rating. A horn is rounding error against any of those.
How to attach it: T-slot, clamp, or strap
Every modern platform and bed rack is built around a T-slot or a crossbar, and either one gives you a drill-free mount.
- T-slot bolts (platforms, Yakima and Leitner bed racks). The Slimline II accepts standard M8 bolts anywhere along its slats and perimeter, and the OverHaul HD and ACS Forged both take T-slot accessories. Slide two T-nuts into the slot, set a flat aluminum or steel plate on top, and secure the horn's base to the plate. Use nylon-insert lock nuts and a drop of medium-strength thread locker. Highway vibration loosens rack hardware, and a horn on two loose bolts at 70 mph is a projectile.
- Tube clamps (round-tube racks and crossbars). This is the same job as mounting on a cage. Measure the tube with calipers, buy clamps sized to it, and follow our roll bar and roll cage mounting guide. Clamps beat straps for anything that lives outside the truck at speed.
- Cam-buckle straps (trip-only mounts). A 1-inch cam strap has a working load around 500 pounds, plenty for a 4-pound horn, but straps stretch, creep, and abrade against a powder-coated slat. Fine for a weekend, not all season. Our no-drill mounting guide covers when a strap is the right call.
Then the install itself, in four moves:
- 1. Pick the bell direction. Forward and level is loudest, but on a roof a level forward-facing bell takes highway spray straight in. Tilt the bells 10 to 20 degrees downward so the trumpets drain and still project ahead. Our mounting direction guide walks through the trade-off. Never point a bell at the sky.
- 2. Keep the battery reachable. On a roof platform, use the rear or driver's-side edge so you can swap a pack standing on the tire. On a bed rack, the front crossbar just behind the cab is ideal: the cab blocks wind and you reach the pack from the bed.
- 3. Bolt or clamp the base, then twist-test it. If the whole rack moves before the horn does, you are done. If the horn shifts on its plate, add a second fastener or a bigger plate.
- 4. Click the pack in and fire it from the cab. Doors shut, hit the fob from the driver's seat, then from the tailgate, then from 100 feet out. Retorque after the first 100 highway miles and put the hardware on your pre-trip check.
Wind, water, and highway speed
A horn on a roof rack lives in the airstream all day. Start with drag. The Department of Energy puts a large, blunt roof-top cargo box at a 6 to 17 percent fuel-economy hit on the highway and 10 to 25 percent at Interstate speeds; a 14-inch horn is a fraction of that frontal area, but it is not zero. If your rack has a wind fairing, mount the horn behind it. If not, a bed rack at cab height keeps the horn in the cab's wake and sidesteps the issue. The DOE figures are at fueleconomy.gov.
Next is whistle. Four open trumpets facing a 70 mph wind can sing. The downward tilt from step one fixes most of it.
Then water. The Extreme Series is rated splash-resistant, not submersible, and the compressor housing sits behind the bells. Downhill bells drain themselves after rain or a car wash. Through a winter, pull the pack and blow the trumpets clear before a freeze, because ice in a bell is the one moisture problem a blast will not clear.
Last, an unsecured load is a legal problem, not just a mechanical one. The AAA Foundation for Traffic Safety counted more than 200,000 crashes involving road debris between 2011 and 2014, with about 39,000 injuries and more than 500 deaths, and about two-thirds of that debris came off vehicles with unsecured loads or poor maintenance. Bolt the horn down like you mean it.
Theft and quick-release
A horn on a rack is visible, and the battery on it is what a thief wants. Three defenses, and they stack.
- Take the pack. The horn is a handheld tool that happens to be bolted down. The pack clicks off in a second, and a horn with no battery is dead weight. Pull it overnight in town, and any time the truck sits in sun for days, since heat ages lithium cells.
- Security fasteners. Swap the T-slot bolts for pin-in-hex or pin-in-Torx security screws. A thief with a multi-tool cannot back them out in a parking lot.
- Quick-release brackets with locking pins. The overland market already sells quick-release mounts for rooftop tents and crates that hold with high-strength pins and offer key-locking pins as an upgrade. The same bracket under a horn lets you pull the unit into the cab in ten seconds at a trailhead.
Firing it from the cab: remote range up top
This is where a rack mount shines over every hidden spot. The remote in the box is a 433 MHz key fob rated at 160 feet, and the optional long-range fob reaches up to 2,000 feet. Both are line-of-sight figures, and the thing that cuts them most is metal between fob and receiver. A horn behind a steel bumper or inside a steel bed sees the shortest range of any install. A horn on top of the rack has open air on every side, so the fob signal from inside the cab leaves through the windows and reaches the receiver with nothing to fight through. At camp, the long-range fob will trigger the horn from across a field to move an animal or signal a group.
Our remote range and pairing guide covers learn mode and what to do when range drops.
One safety note that matters more up top than anywhere else. NIOSH sets 140 dB as the ceiling for peak impulse noise, and the Extreme Series reaches 150 dB at full power. A roof-rack horn sits just above the driver's head, behind glass and steel that knock the level down inside, but anyone standing beside the truck is fully exposed. Use the soft 110 dB or medium 130 dB setting around people, save full power for open road and open country, and keep bystanders 100 feet back or in hearing protection.
FAQ
Will the horn hurt the rack or the roof?
No. The horn is 4 pounds, and every rack cited here carries hundreds of pounds. The only risk is a loose fastener, so use lock nuts and thread locker and recheck after the first long drive.
Can I leave it on the roof in the rain?
Yes, as long as the bells point level or downhill. The unit is splash-resistant, and a downward tilt drains the trumpets. Pull the battery if the truck sits for a week or more, and blow the bells clear before a hard freeze.
Does the horn have to face forward on a roof rack?
Forward is loudest for traffic. Off road or at camp, sideways or slightly rearward is fine and takes less spray. What matters most is that the bells never point up.
Which is louder, roof rack or bed rack?
Roof rack, by a small margin, because nothing is ahead of the bells. A bed rack at cab height gives up a little forward projection but protects the horn from wind and spray. For most daily-driven trucks it is the better trade.
