Yes — you can mount a train horn upside down. The compressor and the diaphragms don't care which way gravity points. What kills horns is where the trumpet bells end up facing, because a bell that catches rain or holds a puddle will quiet a horn faster than years of hard use.
The short answer: it's about the bells, not the body
People ask this question two different ways, so let's split it:
- "Can the horn body be inverted?" Yes. A battery train horn is a sealed compressor, a diaphragm assembly, and a set of trumpets. There's no oil sump, no fluid reservoir, and no air tank that needs to sit level. Flip it, tilt it, hang it from a roll bar — the mechanism works the same in any orientation.
- "Can the trumpets point up?" No — this is the one orientation to avoid outdoors. A bell opening that faces the sky is a funnel. Rain, car-wash spray, and snowmelt run straight down the trumpet throat to the diaphragm, and there's no path for it to leave.

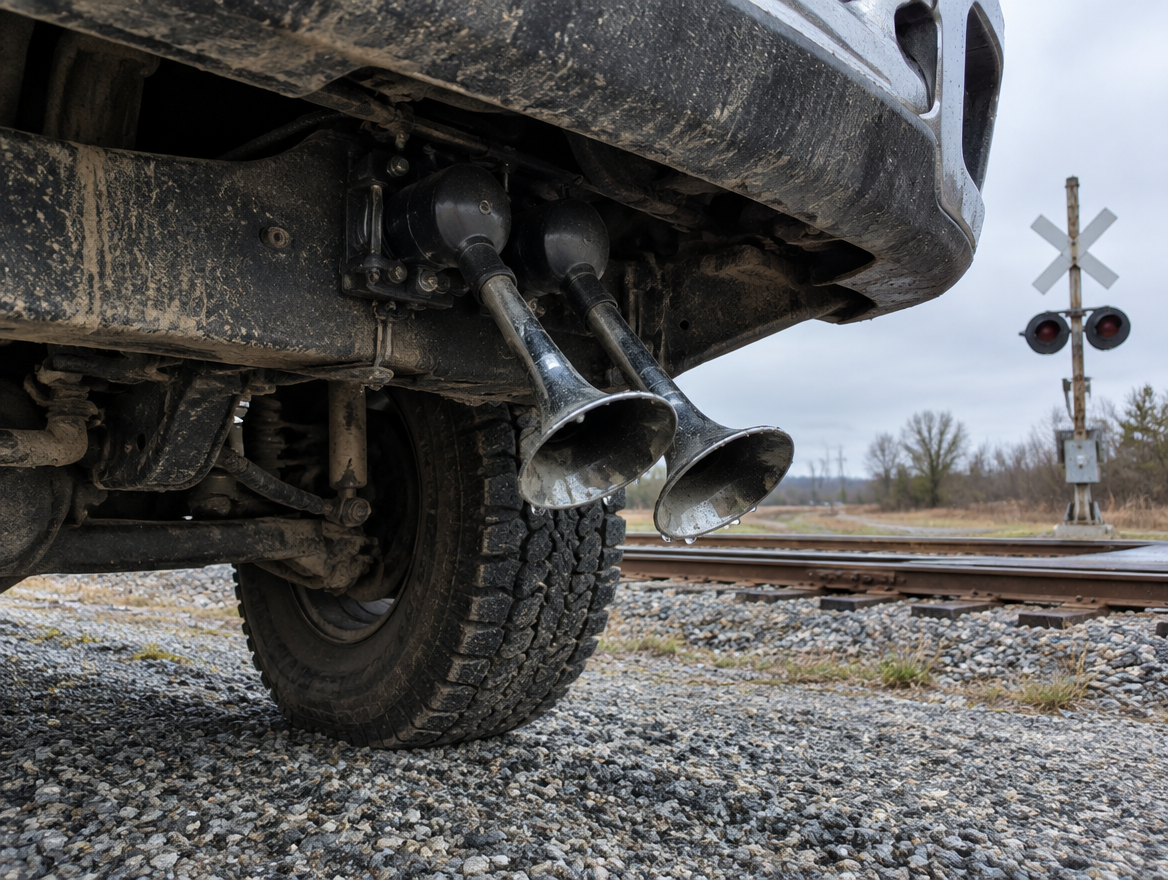

So the real rule is simple: mount the unit any way you like, as long as every bell opening points level or downhill. An upside-down mount that leaves the bells angled toward the ground is not just acceptable — it's often the best-draining setup available.
Why installers deliberately point horns down
Look at a semi truck or a locomotive and you'll notice the horn bells rarely face dead-forward and never face up — they're angled toward the road. Installers on train horn forums do the same thing on pickups for two reasons: a downward tilt keeps snow, mud, and spray out of the bells, and it spreads the sound in all directions instead of beaming it forward. One K5LA owner on a train horn forum runs his horns at roughly a 20-degree downward angle for exactly this reason.
Boaters — who deal with more standing water than anyone — take it further. Marine horn maintenance threads recommend mounting trumpets angled down so water can't run inside, and when a horn housing has no factory drain, a common fix is drilling a small 1/8-inch drain hole at the lowest point of the housing so trapped water has somewhere to go.
The physics is unglamorous: water follows gravity. Point the opening downhill and every drop that lands in the bell rolls back out. Point it uphill and the trumpet becomes a rain gauge.
What water actually does inside a train horn
A train horn makes sound when air rushes past a thin diaphragm and makes it oscillate. Anything sitting on that diaphragm changes the note — or stops it entirely. Here's the damage sequence, from mild to terminal:
- Squeaks and pitch shift. HornBlasters' maintenance guide notes that if your horn suddenly sounds higher-pitched or squeaky, the likely culprit is moisture on the diaphragm. The fix at this stage is easy: keep blasting the horn and blow the water out.
- Muffled, weak, or gurgling blasts. Standing water in the trumpet throat absorbs the sound energy before it leaves the bell. The horn works, but it sounds like it's underwater — because part of it is.
- Corrosion. Water that never drains sits against the diaphragm and its seat. HornBlasters calls water and rust the primary enemies of any component installed underneath a vehicle, and the diaphragm is the thinnest, most precision-made metal part in the whole horn.
- Freeze damage. In winter, trapped water turns to ice inside the trumpet throat. Best case, the horn is silent until it thaws. Worst case, expanding ice deforms the diaphragm seat and the horn never sounds right again.
- Debris cementing. Water is also the glue that turns dust into mud. A dry bell sheds dirt; a wet one collects a paste of road grime that hardens in the throat.
Every mounting orientation, ranked
Here's how the common orientations stack up for a horn that lives outside on a truck, UTV, boat, or trailer:
| Orientation | Moisture risk | Verdict |
|---|---|---|
| Bells angled slightly down (10–45°) | Lowest — self-draining | Best all-around. Water rolls out on its own. |
| Bells pointing straight down | Very low | Fine. Fully self-draining; sound disperses evenly instead of projecting forward. |
| Bells level, facing rearward or sideways | Low–moderate | Good. Avoids headwind spray; check bells after washes. |
| Bells level, facing forward | Moderate | Loudest straight ahead, but highway rain and spray blow directly into the openings. Add a slight downward tilt. |
| Bells tilted upward — any amount | High | Avoid outdoors. The bell collects every rainfall and holds it against the diaphragm. |
Notice what's not on the risk list: whether the horn body itself is right-side-up. An inverted body with down-angled bells outranks an upright body with up-tilted bells every time. If flipping the unit under a bed rail or crossbar is what gets your bells pointed downhill, flip it. For the full bracket-by-bracket walkthrough, see our guide to mounting a portable train horn on a truck with no wiring.
Upside down on a portable horn gun: mounting and storage
Battery-powered horn guns change this conversation in a useful way: the horn doesn't have to live outside at all. A unit like the Extreme Series Train Horn for Milwaukee® 18v Battery is a self-contained 150 dB horn that runs off the M18 pack you already own — no air tank bolted to the frame, no lines routed through the firewall. Most owners keep it in the cab, a door pocket, or a bed toolbox and fire it by hand or with the wireless remote, which works from up to 2,000 feet away. Indoors, orientation is a non-issue: rain never reaches it, so store it trumpets-up, trumpets-down, or on its side.
If you do mount a horn gun outside — hanging inverted under a UTV roll cage, strapped beneath a bed rail, bracketed on a headache rack — apply the same bell rule as a fixed horn:
- Inverted under a bar: fine, and usually ideal — the bar shields the unit from above while the bells angle down and drain freely.
- Muzzle-up in a vertical holster: fine in the cab; outdoors, only under a cover or cap where rain can't fall into the bells.
- Battery note: whatever the orientation, make sure the pack is latched and supported. An 18v battery adds real weight, and vibration works on it constantly. Remove the pack for long-term storage.
We cover the in-cab, holster, and toolbox options in detail in where to store and mount a battery train horn gun on your vehicle.
The 30-second drainage check
Whatever orientation you land on, this quick routine keeps moisture from ever becoming a repair:
- After heavy rain or a car wash, tip the bells down (or just look up into them if they're mounted) and let any water run out.
- Fire two or three test blasts — moving air is the best dryer a diaphragm has, and it clears water you can't see.
- Before a freeze, confirm the bells are empty. Ice is the one moisture problem a blast can't fix.
- Once a season, wipe out the bell interiors so grit doesn't build a dam that holds water in the throat.
FAQ
Will mounting a train horn upside down damage the compressor?
No. A battery train horn's compressor is a dry, sealed unit with no oil sump or fluid that needs to stay level — it pushes ambient air through the trumpets for a second or two per blast and shuts off. It runs the same inverted, vertical, or on its side.
Does pointing the trumpets down make the horn quieter?
It changes the shape of the sound more than the amount. Installers who angle horns downward report the blast dispersing in all directions rather than beaming forward — still extremely loud, just less directional. For maximum reach straight ahead, keep the bells near level with a slight downward tilt for drainage.
My horn sounds squeaky or higher-pitched after rain. Is it ruined?
Almost certainly not — that's the classic symptom of moisture on the diaphragm. Fire several blasts to blow the water out; the tone normally returns as the diaphragm dries. If the weak sound persists for days in dry weather, then inspect for debris or corrosion.
Do I need to drill a drain hole in my horn?
If your bells point level or downhill, no — gravity already does the job. Drilling a small drain at the housing's low point is an old marine-horn fix for units that trap water by design, and it shouldn't be necessary on a horn you can simply orient correctly. Drilling also voids most warranties, so treat it as a last resort on old hardware.
What about storing a horn gun through winter?
Bring it inside, confirm the trumpets are dry, and pull the battery pack. Indoor storage orientation doesn't matter — moisture is an outdoor problem.
