Google any traditional train horn kit and you'll hit the same spec within seconds: 120–150 PSI. That one number dictates your compressor, your tank size, your wiring — and it's the single biggest reason battery-powered train horns exist.
The Short Answer: 120–150 PSI
Most aftermarket train horn kits perform best between 120 and 150 PSI, and they hit their loudest output right at 150 PSI. A compressor producing at least 90–120 PSI will still make the horn sound off — just not at full volume. Authentic cast-metal locomotive horns, the kind pulled off real trains, are built around 140–150 PSI and don't sound right below that.
For context, that's several times the pressure in your truck tires. Holding 150 PSI on board a pickup takes a dedicated air system: a 12-volt compressor, a storage tank, a pressure switch, a relay, and air line connecting all of it. That's the “kit” in a train horn kit — the trumpets are often the simplest part of the box.
Why Loudness Lives and Dies by Pressure
A train horn is mechanically simple. Compressed air rushes past a flexible diaphragm at the base of each trumpet, the diaphragm oscillates against a nozzle, and the trumpet's flare amplifies that vibration into the blast you hear. Air pressure is the only energy source in that chain — more pressure means the diaphragm slams harder and faster, which means more sound.
The drop-off is steep. Cutting operating pressure by 30–40% can cost 10–15 dB of output — a difference anyone standing nearby will clearly hear. A horn built for 150 PSI running on a 100 PSI shop compressor isn't slightly quieter; it's a different, weaker horn.
Real locomotives solve this with industrial hardware. A locomotive's main air reservoir is kept at 130–140 PSI, and the horn is fed roughly 125–140 PSI from it. Federal rail regulations (49 CFR 229.129) require that horn to produce 96–110 dB(A) measured 100 feet in front of the locomotive — and it takes a locomotive-sized air system to deliver that on demand, all day long.

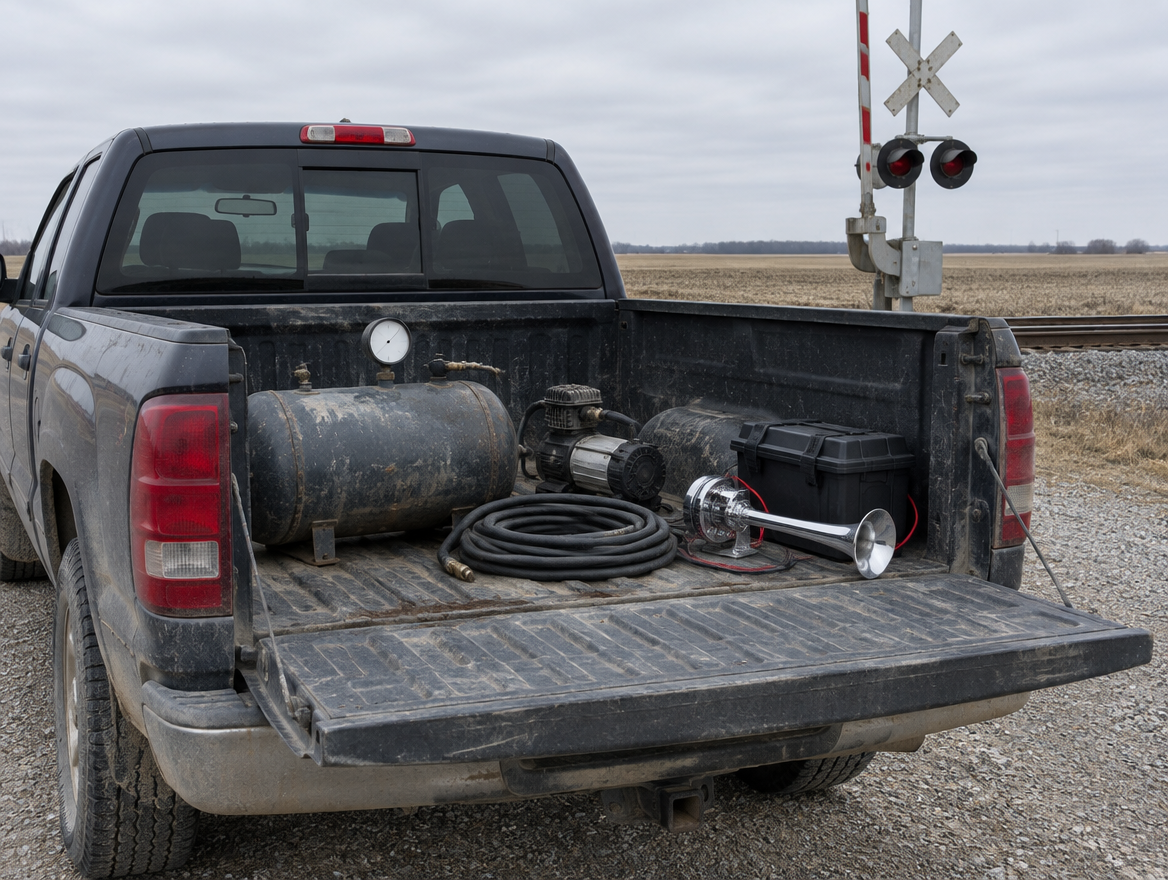

What Holding 150 PSI on a Truck Actually Takes
Here's what the air side of a traditional tank-and-compressor kit involves, with real numbers:
- The tank. A 1-gallon tank at 150 PSI gives you roughly 2–3 short one-second blasts before pressure sags out of the usable range. A 5-gallon tank stretches that to about 10–15 blasts — but now you're finding room for a 5-gallon steel cylinder on your frame rail.
- The compressor. A mid-range 12-volt compressor moving about 1.5 CFM needs 3–4 minutes to refill a 3-gallon tank from empty. A 2.5–3 CFM unit gets that under 2 minutes — for more money and more amp draw.
- The pressure switch. Kits typically use a switch that kicks the compressor on around 110 PSI and shuts it off at 145–150 PSI, cycling automatically as you burn air.
- The duty cycle. Many 12-volt compressors are rated around a 50% duty cycle — they need roughly as much rest time as run time, so back-to-back blast sessions can outpace the hardware.
None of this is exotic — plenty of trucks run onboard air. But it is a permanent install with wiring, plumbing, leak checks, and periodic moisture draining. We break down the full cost and install picture in our comparison of a train horn gun vs an air tank and compressor kit.
How a Battery Train Horn Skips the Tank Entirely
A battery-powered train horn takes the same three ingredients — compressor, air, trumpets — and collapses them into one portable unit. Instead of storing 150 PSI ahead of time, its built-in compressor feeds the trumpets directly, in real time, the moment you pull the trigger. The power source is a cordless tool battery you probably already own: Milwaukee® M18™, DeWalt® 20V MAX™, Ryobi® ONE+™, Makita® LXT™, and a dozen other platforms.
Because there's no stored air, there's nothing to pre-fill, no pressure switch to cycle, no tank to drain, and no leak-down while it sits in the garage. Snap on a charged pack and the horn fires at full output on the first pull. Loudness scales by trumpet count and compressor tier instead of tank pressure: Dual models around 130 dB, Quad models around 140 dB, and the Extreme tier at 150+ dB. The Extreme Series Train Horn for Milwaukee® 18v Battery sits at the top of that range and pairs with a wireless remote rated up to 2,000 feet, so it can fire from a truck bed or roof rack while you stay in the cab.
If the direct-drive design is new to you, our explainer on what a train horn gun is and how it works walks through the internals piece by piece.
Tank Kit vs Battery Horn: The Pressure Scorecard
| Factor | Tank + compressor kit | Battery train horn |
|---|---|---|
| Operating pressure | 120–150 PSI stored in a tank | None stored — compressor drives trumpets on demand |
| First blast after sitting | Wait for the tank to fill (3–4 minutes from empty on a mid-size setup) | Instant — battery on, trigger pulled |
| Blasts before a refill | Roughly 2–3 on a 1-gallon tank; 10–15 on a 5-gallon | Limited by battery charge, not air volume |
| Recovery | Compressor cycles from ~110 back to 150 PSI | Swap or recharge the tool battery |
| Installation | Compressor, tank, switch, relay, air line, wiring | None — handheld or strap-mounted |
| Upkeep | Drain tank moisture, check fittings for leaks | Keep a battery charged |
When a Tank System Still Makes Sense
Honest answer: sometimes it does. If you want a horn hardwired to a button in the cab so you can honk in traffic like a factory horn, a tank kit is the tool for that job. Same if you want onboard air doing double duty — airing tires back up on the trail, running air suspension — or you specifically want the sound character of an authentic 140–150 PSI locomotive casting and accept the install that comes with it.
But if the goal is maximum portable noise — for the boat, the campsite, the tailgate, the UTV, game day, or scaring coyotes off the property — stored pressure is a cost, not a feature. If you enjoy wrenching either way, our breakdown of a DIY train horn kit vs a ready-built battery horn covers the middle path.
FAQ
Can I run a train horn at 100 PSI?
It will sound, but not at its rated volume. Dropping 30–40% below a horn's design pressure can cut output by 10–15 dB, so a 150 PSI horn on a 100 PSI supply gives up a big, audible chunk of its loudness.
What PSI does a real locomotive horn use?
Roughly 125–140 PSI, fed from a main air reservoir kept at 130–140 PSI. Federal regulations require the horn to produce 96–110 dB(A) at 100 feet in front of the locomotive.
Do battery train horns have a PSI rating?
Not one you manage. The integrated compressor drives the trumpets directly, so there's no tank pressure to monitor or maintain. Compare battery horns by decibel tier and trumpet count — Dual (~130 dB), Quad (~140 dB), Extreme (150+ dB) — instead of PSI.
Will a bigger tank make my horn louder?
No. Loudness comes from operating pressure and horn design. Tank volume only decides how long you can blast before the compressor has to catch up — a 5-gallon tank holds the same 150 PSI as a 1-gallon, just more of it.
How fast does a tank refill between blasts?
Depends on compressor flow: about 3–4 minutes for a 3-gallon tank from empty at ~1.5 CFM, and under 2 minutes at 2.5–3 CFM. The pressure switch tops the tank back up automatically once pressure falls to its cut-in point.
