A battery-powered train horn gun isn't a permanent air system bolted under the bed. It's a self-contained unit you grab, point, and fire, so the real question owners ask after the first blast isn't "how do I wire it?" It's "where do I keep this thing?" It's bigger than a phone and heavier than a flashlight, and you don't want it rolling around your floorboard. Here's how to store it for quick access, keep it from cooking in the heat, and mount it semi-permanently if you'd rather leave it in place.
First, know how big the unit actually is
The "where do I keep it" worry comes straight from the dimensions, so start there. Our Extreme Series unit measures about 14 x 6 x 12 inches and weighs roughly 4 pounds before you snap a battery on. That's close to the footprint of a small toolbox or a cordless leaf blower head, no charger, no compressor, no tank. Add a 2.0Ah to 12.0Ah tool battery and you're still well under 10 pounds total. So you're not finding a home for a tangle of hardware; you're finding a spot for one rigid box plus whichever battery you already own.
That size is the whole reason these are easy to live with. A traditional onboard train horn means a 1.5 to 5 gallon air tank and a compressor that has to be permanently mounted. A battery horn gun fits in the space you already use for jumper cables, a recovery strap, or a tool bag. The trade-off: because it's portable, you have to decide whether you want it out and ready, or tucked away and protected.
Quick-access vs. secure storage: pick your priority
Every storage decision comes down to one trade-off. Do you want the horn within arm's reach so you can grab it in seconds, or locked away where weather and thieves can't reach it? You usually can't have both at once, so match the spot to how you use the horn.
- Quick-access wins if you use the horn for safety or signaling on the move, clearing a blind trail, warning a tailgater, getting a dock's attention. Behind-the-seat or a console-side bag keeps it reachable.
- Secure storage wins if it's mostly for events, tailgating, the lake on weekends. A lockable toolbox or cargo bin protects a several-hundred-dollar unit and your battery from theft and sun.
- Both is possible with the wireless remote. Stow the horn unit somewhere protected, like a bed box, and keep only the small remote in the cab. Our standard remote reaches about 160 feet, and the long-range option works up to 2,000 feet, so the horn doesn't have to be next to you to fire.
Best storage spots by vehicle
The right home for the horn changes with what you drive. Here's where owners actually keep them across the most common rigs.
| Vehicle | Best storage spot | Why it works |
|---|---|---|

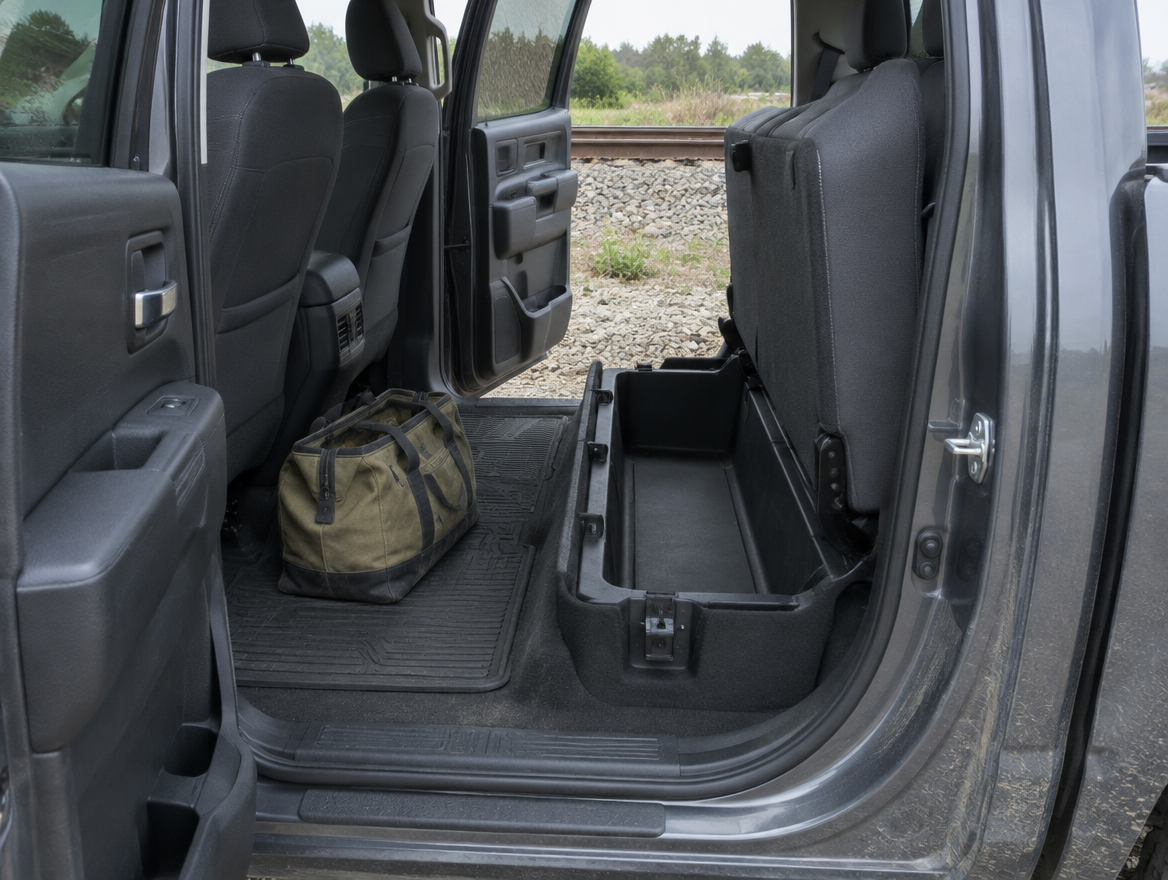

| Pickup truck | Behind-seat floor area, or a lockable bed toolbox | Behind the seat is fast and dry; a bed box is secure and frees up cab space |
| Jeep / SUV | Rear cargo area in a soft case or cargo bin | Keeps it from sliding; easy to pull out trailside |
| UTV / side-by-side | Sealed cargo box or under-seat compartment | Protects it from dust and trail vibration |
| Boat | A dry locker or console cubby | Keeps spray off the battery contacts |
| RV / camper | An exterior storage bay, padded | Out of living space but ready for signaling at camp |
Two rules apply everywhere. Keep the horn from sliding, because 8 pounds bouncing around a UTV bed will scuff trumpets and stress the housing, so a strap, a bin, or a foam-lined case earns its keep. And keep the trumpet mouths pointed away from where water or dust collects, so they stay clear and loud.
Keep the battery out of the heat
Where you store the horn matters less for the horn itself, which is aluminum and powder-coated, than for the lithium battery you leave on it. A parked vehicle in the sun is one of the worst places to leave any tool battery. In a National Weather Service experiment, a car's interior climbed from 83°F to 124°F in just over two hours on a day that topped out at 95°F outside, an increase of more than 40 degrees, with most of the rise happening early. You can read the full National Weather Service breakdown of how fast a parked car heats up.
That matters because lithium-ion tool batteries are happiest stored between roughly 41°F and 77°F, and sustained heat past about 120°F starts permanently shaving off capacity. A pack baked in a hot cab all summer can lose a meaningful chunk of its blasts-per-charge over time. The fix is simple: store the horn assembled if you like, but pull the battery off and bring it inside when the rig is going to sit in the sun for hours. The horn body can live in the truck; the battery should not bake.
Mounting it for permanent use vs. just stowing it
Storing and mounting aren't the same job. Stowing means tossing it in a bag or bin between uses. Mounting means fixing it in one spot so it's always aimed and ready, more like a built-in horn. Because there's nothing to wire, mounting a battery horn gun is just bracketry: a length of slotted angle, a few stainless bolts or strong clamps, and a solid surface like a bed rail, a roll cage, or a bull bar.
If you go the permanent route, point the trumpets forward and slightly down so sound carries and water drains, and leave the battery easy to reach for charging and theft-proofing. For a full walkthrough of brackets, no-drill clamp options, and aiming, see our guide on how to mount a portable train horn on a truck with no wiring. Most owners land somewhere in between: a quick bracket in the bed for the season, and back to a padded case in the off-months.
Whichever brand battery you run, Milwaukee M18, DeWalt 20V MAX, Ryobi ONE+, Makita LXT, and the rest, the storage and mounting logic is identical, since the only thing that changes between models is the battery foot. If you're shopping the top tier, the Extreme Series Train Horn for Milwaukee® 18v Battery is the 150 dB, four-trumpet unit most of these examples are built around.
A simple storage checklist
- Pick one home for the horn so it's never "somewhere in the truck."
- Use a strap, bin, or padded case so it can't slide or rattle.
- Keep the small remote up front; the horn can live anywhere within range.
- Pull the battery and bring it inside when parking in the sun for hours.
- Point trumpets so water and dust drain out, not in.
- If you mount it permanently, use stainless hardware and keep the battery reachable.
FAQ
Can I just leave it in my truck bed all the time?
The aluminum horn body handles weather fine, especially under a tonneau or in a toolbox. The catch is the battery: don't leave a lithium tool battery baking in the sun for days. Store the horn out back if you want, but bring the pack inside in hot weather.
Does it need to be mounted to work?
No. It's fully self-contained, so it fires whether it's bolted to a bracket, sitting in a bin, or held in your hand. Mounting just keeps it aimed and ready without you grabbing it each time.
How do I keep it from sliding around?
A foam-lined case, a cargo bin, or a simple ratchet strap to a tie-down point does the job. At roughly 4 pounds plus a battery, it has enough mass to slide and scuff trumpets on a rough trail if it's loose.
Can I store the horn far from where I trigger it?
Yes, that's the advantage of the wireless remote. Keep the horn in a locked bed box or cargo bay and the remote in the cab. The standard remote reaches about 160 feet and the long-range version up to 2,000 feet.
Will cold winter storage hurt it?
Cold is gentler on lithium batteries than heat, but for long off-season storage, keep the battery indoors at a moderate temperature and a partial charge. The horn body itself isn't bothered by the cold.
