Every train horn owner eventually asks the same question: how do I get more sound out of this thing? Good news — you can, but the extra decibels come from exactly three places: the trumpets, the power feeding the compressor, and where the horn points. Here's what actually works on a battery-powered train horn, with real numbers behind every claim.
The honest math: what "louder" actually means
Decibels are logarithmic, and that changes how you should think about every upgrade. Three rules cover almost everything:
- +3 dB doubles the sound power — but to your ear it's only a slight, just-noticeable bump.
- +10 dB sounds roughly twice as loud to a human listener, even though it takes ten times the acoustic power to get there.
- Outdoors, sound drops about 6 dB every time distance doubles. A horn that reads 130 dB up close fades fast over open ground — which is also why every extra decibel at the source extends your effective range.
The takeaway: a tweak worth 1–2 dB is nearly imperceptible, while a change worth 10 dB is a different animal entirely. So skip the folklore mods and spend your effort on the levers that move the number by whole tiers. That's the framework — now the three levers, ranked by impact.
Lever 1: upgrade the trumpets — the biggest single jump
The trumpet is not a decoration. Its flared shape couples the compressor's air pulses to the open air, and its length and bell diameter set the tone. Longer, wider bells produce deeper, more resonant frequencies that carry further — which is why compact dual-trumpet horns bark higher and bigger quad setups bellow lower and travel farther.

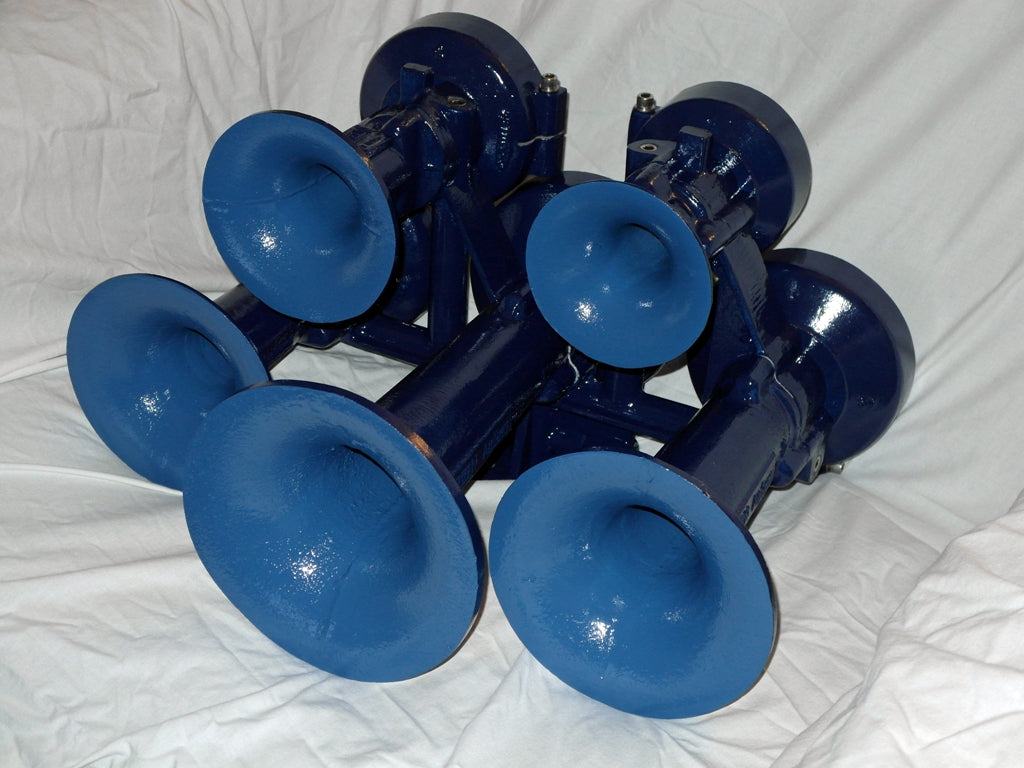

On battery-powered train horns the trumpet ladder maps directly to output tiers: Dual models run around 130 dB, Quad models reach roughly 140 dB, and Extreme-class quads push past 150 dB. Remember the perception rule — each 10 dB tier jump lands as "about twice as loud" to bystanders, not a subtle difference. The full breakdown of the three tiers is in our Dual vs Quad vs Extreme tier comparison.
Already own a quad-trumpet unit? The cheapest real upgrade is a matched long-trumpet set. The Extreme Series Quad Trumpets swap onto the same horn body, add about 40% more output power, and drop the tone lower so the blast carries further — no new compressor, no new battery.
And if you're still shopping for the horn itself, start at the top of the ladder instead of upgrading later: the Extreme Series Train Horn for Milwaukee® 18v Battery ships with the long trumpets already fitted, runs off any M18™ pack you already own, and fires from a wireless remote at up to 2,000 ft.
Lever 2: feed the compressor full battery power
A train horn's loudness is set by air delivery — pressure and volume of air hitting the trumpets. In a battery horn, that air comes from an onboard compressor, and the compressor only delivers its rated airflow when the battery holds voltage under load. That's where lithium-ion behavior matters:
- Voltage sag is real. Every lithium-ion cell has internal resistance, so voltage dips the moment a heavy load — like a compressor motor — kicks in. The more the pack sags, the slower the motor spins and the weaker the blast.
- Charge state matters. A pack sitting near empty starts from a lower resting voltage and sags deeper under the same load. For maximum output, blast on a fresh charge.
- Pack health matters. Aged or worn cells develop higher internal resistance and sag harder — a tired battery can make a healthy horn sound tired. If your horn has gone soft, test it with a newer pack before blaming the compressor.
- Bigger packs hold up better. Higher-capacity packs with more cells in parallel share the load, so they typically sag less during a long blast — and give you far more blasts per charge as a bonus.
- Cold is the enemy. Internal resistance climbs at low temperature, so a freezing pack sags like a worn one. In winter, keep the battery in the cab until you need it.
One thing you should not do is chase voltage: never adapt a horn to a higher-voltage battery platform than it was built for. The motor and switching electronics are specced for their rated pack, and overvolting is how compressors die young.
Lever 3: mounting and aim — free decibels
Trumpets are directional. Most of the energy leaves along the bell axis, so a horn pointed at your target simply measures louder there than the same horn pointed sideways or down. Aim is the only upgrade on this list that costs nothing.
Placement can add real output too. A sound source next to a large hard surface radiates into a half-space instead of open air — the reflecting plane bounces energy forward, adding about 3 dB in general and up to 6 dB for low frequencies right at the boundary. In practice: a horn backed by a tailgate, a garage wall, or a barn door throws noticeably more sound forward than the same horn held in open space. That's a power-doubling for free.
Height helps as well — mounting the horn up high gives the sound a clear line over obstacles instead of dumping energy into the ground and brush. The full geometry, including which way to face the bells on a moving truck, is covered in our guide to the best mounting direction for maximum loudness.
The reverse also applies: anything between the bells and open air eats decibels. A horn buried under a seat, wrapped in a tool-bag, or firing into a closed truck-bed cover will always underperform its rating. Trumpet mouths need a clear path.
What doesn't work (and what can wreck the horn)
- Cutting trumpets shorter. Length sets pitch. A shortened trumpet plays a higher note — it doesn't play a louder one — and an uneven trim ruins the multi-trumpet chord that makes a train horn sound like a train.
- Drilling extra holes in the bells. Holes bleed pressure and kill the resonance the flare is designed to build. This is a one-way trip to a quieter horn.
- Overvolting the compressor. Covered above — more voltage is not a free lunch; it's a burned motor.
- Sealed "stealth" boxes. Hiding the horn is fine; sealing it airtight is not. If the enclosure has no opening for the sound, the sound stays in the box. Leave a port facing the direction you want the blast to go.
- Machine-gunning blasts. Back-to-back firing heats the compressor until thermal protection steps in. If your horn cuts out during repeated blasts, that's the duty cycle doing its job — let it breathe between salvos.
FAQ
Does a bigger battery make my train horn louder?
Slightly, and mostly indirectly. A higher-capacity pack sags less under the compressor's load, so the motor stays closer to full speed during the blast. The bigger, guaranteed difference is runtime — more blasts per charge. A fresh, healthy pack of any size beats a worn large one.
Do more trumpets automatically mean more decibels?
Not linearly. Doubling the number of identical sound sources adds only about 3 dB in theory — a modest bump. The reason Quad and Extreme tiers land 10–20 dB above Dual models is that the whole system scales up: bigger trumpets, more airflow, more resonance — not just a higher trumpet count.
Can I cut or extend the trumpets myself?
You can, but you're re-tuning the horn, not amplifying it. Shorter means higher pitch; longer means lower pitch; mismatched lengths break the chord. If you want a deeper, louder voice, fit a matched long-trumpet set engineered for your horn body instead of freelancing with a hacksaw.
Why does my horn sound quieter than when it was new?
Work through the list in order: battery first (old pack, low charge, or cold pack — all cause voltage sag), then obstructions (debris or a mud dauber nest in a trumpet mouth is more common than you'd think), then moisture in the trumpets after storage. The compressor itself is rarely the culprit.
