When a train horn that used to crack like a freight line starts sounding thin, flat, or just quits mid-blast, the culprit is usually a part most owners have never seen: the diaphragm. It's the one true wear item inside a trumpet-style horn, and the good news is that replacing it is a bench job with hand tools, not a reason to bin the whole horn.
What the Diaphragm Actually Does (and Why It's the Part That Wears Out)
A trumpet-style train horn has no speaker and no electronics in the sound path. The blast is purely mechanical. Compressed air enters the chamber at the back of each trumpet, and pressure builds against a thin, springy disc — the diaphragm — until it lifts off its seat. Air escapes, pressure drops, and the disc snaps back down. That open-close cycle repeats hundreds of times per second, and the trumpet's flared bell amplifies the resulting buzz into the deep, resonant blast you hear far down the road.
Every single blast puts the diaphragm through thousands of flex cycles. Metal and polymer discs both fatigue with that kind of repeated bending, the same way a paperclip weakens when you bend it back and forth. Add moisture, road grit, and temperature swings, and eventually the disc no longer seals cleanly or snaps back crisply. The horn still gets air — it just can't turn that air into a clean blast anymore.
On a battery-powered horn the layout is simpler than a classic truck air system: the onboard compressor feeds the trumpets directly, so there's no tank, no long air lines, and fewer places for problems to hide. If the power side checks out and air is clearly moving, the diaphragm is the prime suspect.
Symptoms That Point at the Diaphragm
Before you open anything up, rule out the easy stuff — dead battery pack, unpaired remote, loose battery connection. Once you know the compressor spins and air is flowing, use the sound itself as the diagnostic:
| Symptom | Likely culprit |
|---|---|
| Weak, low, or whiney blast that used to be strong | Fatigued or damaged diaphragm |
| Higher-pitched squeal, especially after rain or a car wash | Moisture sitting on the diaphragm — often clears after a few hard blasts |
| One trumpet on a quad horn is dead, the rest sound fine | Torn or stuck diaphragm in that one bell |
| Compressor runs, no sound at all from a bell | Diaphragm stuck to its seat, or debris blocking it |
| Nothing runs at all | Electrical — battery, remote, or wiring, not the diaphragm |
Air horn repair guides consistently describe the same signature: a horn that produces a weak, low, or whiney sound after years of use points to a damaged diaphragm, while a squeak that shows up with damp weather points to moisture rather than wear. We walk through the moisture-vs-wear diagnosis in detail in our guide to fixing a weak or squeaky train horn — if you haven't confirmed which one you have, start there. This article covers what to do when the answer comes back "worn."
What Kills a Diaphragm
- Moisture and corrosion. Water is the top enemy of any horn component. In tank-based truck systems, condensation collects in the tank and gets pushed into the horns; owners are told to drain the tank regularly for exactly this reason. A battery-powered horn has no tank to drain, which removes that chore — but rain, humidity, and pressure washing can still put water on the diaphragm and its seat.
- Grit on the seat. Dust and road debris that settle where the diaphragm seals will scratch the disc and hold it slightly open, bleeding pressure and flattening the tone.
- Flex fatigue. Plain old use. The disc bends hundreds of times per second during a blast; after enough cycles it loses spring tension and stops snapping back cleanly.
- Overtightening. A back cap cranked down unevenly or too hard can warp the seat, and a warped seat never seals right again. This is the most common self-inflicted failure during reassembly.

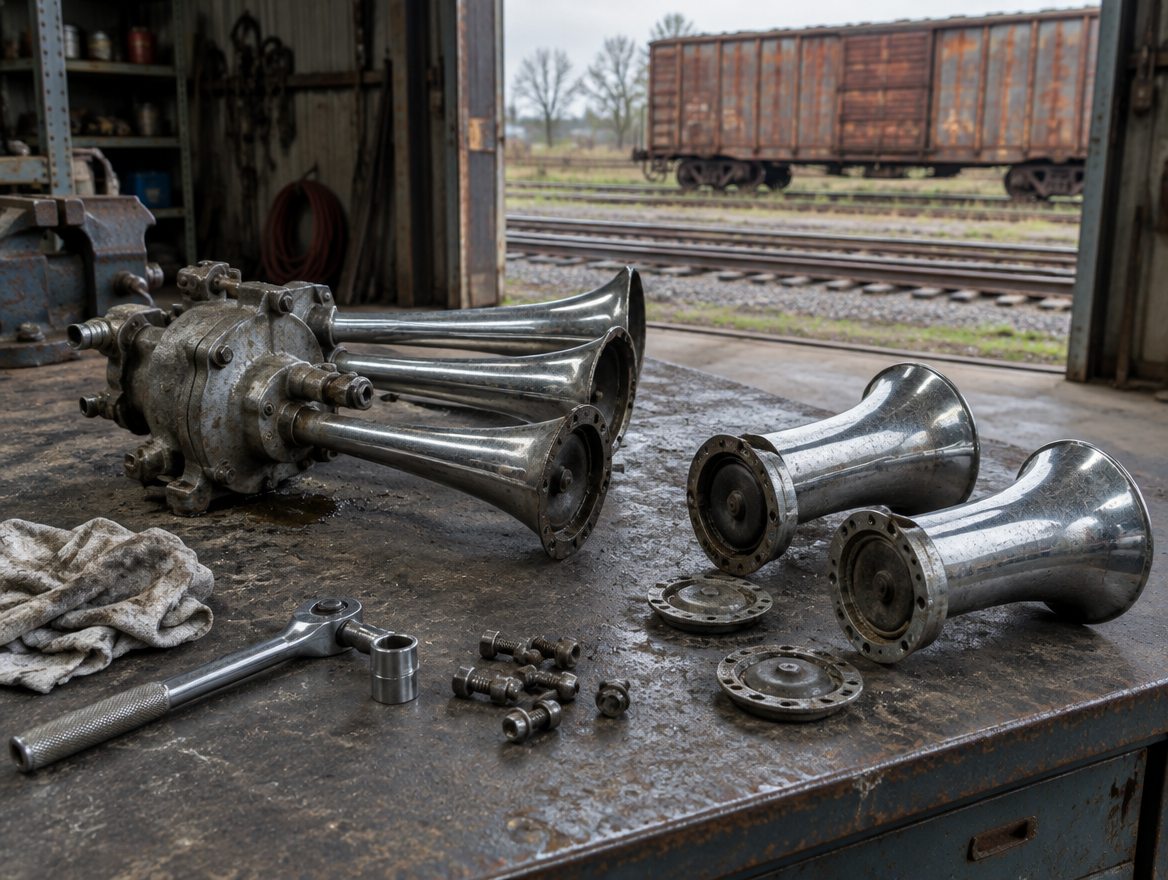

Step-by-Step: Rebuilding the Horn
You need basic hand tools: a wrench or socket for the back-cap fasteners, hex keys on designs that use socket-head bolts, a clean lint-free cloth, and the correct rebuild kit for your horn. Aftermarket diaphragm kits for common trumpet horns cost roughly $11 per bell and include the diaphragm, a cushion ring, and a tension spring — and you need one kit for every bell you're servicing, not one per horn.
- Kill the power. Pull the battery pack off the horn. This is the whole safety procedure — no tank to bleed down, no pressurized line to crack open like on a truck air system.
- Open the back of the bell. Unscrew the back plate or cap behind the trumpet. Work the fasteners loose evenly and hold the cap as the last one comes out.
- Extract the stack and note the order. Inside you'll find the diaphragm, its spring or cushion, and the gasket. Lay the parts out in the order they came out. Designs vary: locomotive-grade horns like the Nathan Airchime K-series stack two stainless steel diaphragm discs around a cushion in every bell, while compact trumpet horns typically run a single disc with a tension spring and cushion ring. If parts stick inside the cap, a light tap on a bench or a toothpick will free them — don't pry with a screwdriver.
- Inspect and clean the seat. Wipe the seat and the inside of the chamber with a dry cloth. Light surface corrosion on the sealing rim can be dressed with a fine abrasive pad; deep pitting or a visibly warped seat means that bell is done. Check the old diaphragm — cracks, creases, or a disc that no longer sits flat confirm the diagnosis.
- Install the new kit in the same order. Reassembly is easier if you set the diaphragm stack into the cap first, then mate the cap to the bell. Same orientation, same sequence the old parts came out in.
- Tighten in a cross pattern — gently. Run every fastener down finger-tight, then snug them alternately across the circle. The housings are typically aluminum or polymer; over-torquing warps the seat and you're back to a leaky, off-pitch horn, permanently this time.
- Test with a short blast. Clip the battery back on and give it a one-second hit. A healthy rebuild sounds immediately loud and clean. If a bell stays silent, the stack is usually hung up in the cap on leftover grime — open it, clean the rim, reseat.
Rebuild or Replace?
Run the math before ordering parts. A diaphragm kit per bell is cheap insurance if the trumpets and housing are sound. But if the bells themselves are corroded, cracked, or the seats are warped, swapping the complete trumpet set is the cleaner fix — on our horns the Extreme Series Quad Trumpets Set replaces all four bells as a unit, fresh diaphragms included.
And if you're rebuilding an older entry-level dual horn for the second or third time, it's worth asking whether the platform still fits you. The Extreme Series Train Horn for Milwaukee® 18v Battery runs the 150 dB-class quad setup off the same M18™ packs you already own, with a wireless remote that works from up to 2,000 feet — a bigger jump in output than any rebuild will ever buy you.
FAQ
How often does a train horn diaphragm need replacing?
There's no fixed service interval — it's symptom-driven. Makers of tank-based horn kits report customers still running their original hardware daily after more than a decade, and a battery-powered horn that lives in a cab or garage sees an easier life than one bolted under a frame rail. Replace the diaphragm when the sound tells you to, not on a calendar.
Can I clean a diaphragm instead of replacing it?
Yes, if it's intact. A disc that's dirty but flat, uncracked, and still springy can be wiped down with a dry cloth and reinstalled. If it has creases, cracks, or has lost its snap, cleaning only postpones the same weak blast.
Why does my horn only squeak after rain?
That's moisture on the diaphragm, not wear. A few hard blasts will usually blow the water out and restore the tone. If the squeal keeps returning, pull the trumpets, dry the chambers, and check the seats for early corrosion before it becomes permanent damage.
Will a new diaphragm change how my horn sounds?
A correct replacement kit restores the original tone — the pitch of each bell comes from the trumpet length and the diaphragm spec it was designed around. If the horn sounds different after a rebuild, the usual causes are a wrong-size kit, parts stacked out of order, or an over-tightened cap.
Should I check my warranty before opening the horn?
Yes. If your horn is still inside its coverage window, contact support before disassembling anything. On BossHorn units you can also add an extra year of warranty coverage at purchase, which covers exactly this kind of wear scenario.
