Type "train horn" into any marketplace search bar and half of the results are not train horns at all — they are small 12-volt electric horns wearing the name. Before you pay for a horn that promises 150 dB and delivers a loud beep, here is how to tell the two machines apart.
Two very different machines share one name
A real train horn — the kind mounted on a locomotive, and the kind serious truck owners bolt into their rigs — is an air horn. Pressurized air is forced through one or more tuned metal trumpets, and the moving column of air does the work. The "12V train horns" flooding online marketplaces are electric diaphragm horns: the same basic technology as the factory horn already in your steering wheel, just tuned lower and packaged with more aggressive photos.
The word "train" in those listings describes the sound the seller hopes you will imagine, not the hardware in the box. And the difference is not cosmetic — it decides how loud the horn can physically get, what it sounds like, and whether the number printed on the box is achievable at all.
How an electric "12V train horn" actually works
An electric horn makes sound with an electromagnet and a thin steel diaphragm. When current flows through the coil, it magnetizes and pulls the diaphragm; that motion breaks the contact, the magnet releases, the diaphragm springs back, and the cycle repeats hundreds of times per second. The buzzing diaphragm is the sound source. In the popular "snail" style, a spiral channel in the housing shapes the tone a little, but the diaphragm is still doing all the work.
That mechanism has a hard ceiling. A metal disc a couple of inches across, driven by a small electromagnet, can only move so much air. Typical 12V dual snail horn kits measure in the range of roughly 105–118 dB up close — louder than many worn factory horns, but in the same general class as a stock horn, not a different category of sound.
Some "electric train horns" are not even horns in the mechanical sense. They are speaker-and-amplifier units that play a recorded horn sound — some listings openly advertise a dozen selectable sound effects. A device with a sound menu is a loudspeaker, and loudspeakers that size cannot reproduce the pressure of a real air blast.

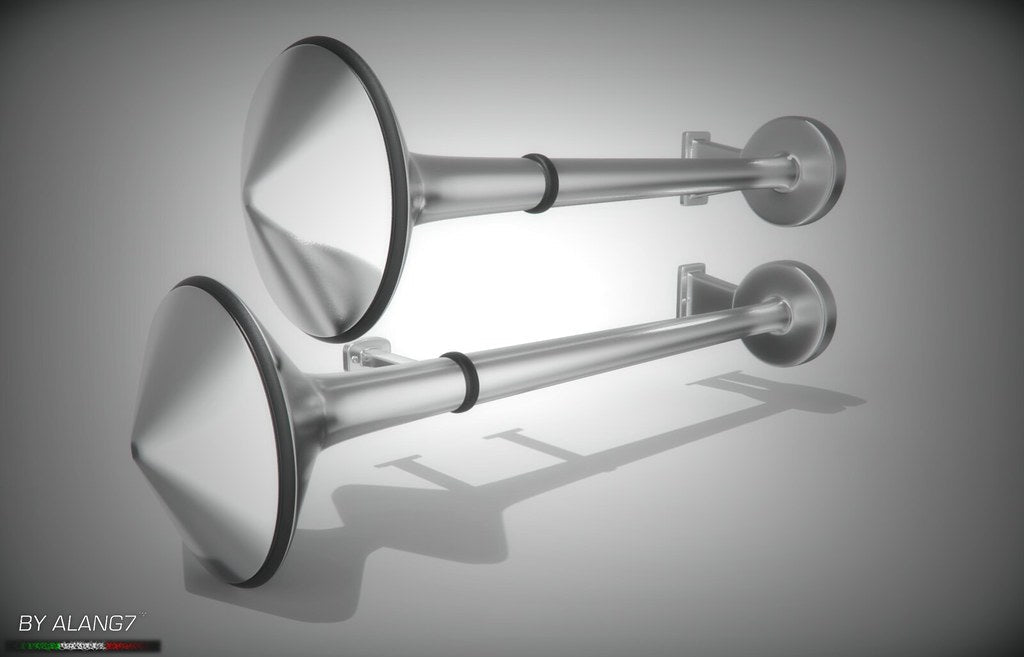

How a real air-powered train horn works
A genuine air horn separates the energy source from the sound source. A compressor pressurizes air — either into a tank or directly into the horn — and that air is released past a diaphragm into a long, flared trumpet. The trumpet converts the pulsing airflow into sound and aims it. Because the compressor can keep feeding the blast, the horn moves a far greater volume of air than any electromagnet-driven disc, which is why properly built air horns land in the 130–150 dB range instead of the 105–120 dB range.
For reference, the Federal Railroad Administration requires every lead locomotive's horn to produce 96–110 dB(A) measured 100 feet ahead of the locomotive (49 CFR 229.129). At 100 feet — not at the horn. Independent bench testing has measured locomotive-grade hardware like the Nathan AirChime K5 at about 149.4 dB near the horn itself. Real train horns also use multiple trumpets tuned to different notes at once, which is why a locomotive produces that unmistakable chord instead of a single flat tone.
The decibel gap, in real numbers
| Horn type | Typical real-world output |
|---|---|
| Factory car/truck horn | ~100–110 dB |
| 12V electric "train horn" (snail or speaker type) | ~105–118 dB measured |
| Battery-powered air train horn (dual trumpets) | ~130 dB |
| Battery-powered air train horn (quad trumpets) | ~140 dB |
| Extreme-tier portable air horns / locomotive-grade hardware | ~150 dB |
| Locomotive horn (FRA requirement) | 96–110 dB(A) at 100 ft |
Keep in mind the decibel scale is logarithmic: a 10 dB increase is roughly twice the perceived loudness, per the National Institute on Deafness and Other Communication Disorders. So the gap between a 115 dB electric horn and a 140 dB quad-trumpet air horn is not "25% louder" — it is several doublings of perceived volume. That is also why inflated ratings matter so much: marketplaces carry electric horns advertised at 150 dB, and at least one listing claims 300 dB — a number louder than any sound air at sea level can physically carry. If you want the full breakdown of how those numbers get juiced, read our guide to fake train horn decibel ratings.
Five signs the "train horn" in your cart is electric
- No compressor anywhere in the photos. A real air horn needs an air source. If the listing shows only a horn body and two wires, it is an electric diaphragm horn.
- It weighs almost nothing. Trumpets that produce 130+ dB have real length and real material. A shipping weight under a couple of pounds for a "complete train horn" is a giveaway.
- Selectable sound effects. A dozen horn sounds in one unit means a speaker playing recordings, not a horn.
- Impossible numbers. Claims of 150 dB from a $20 electric unit — or anything above 194 dB, the physical limit for undistorted sound in air — are marketing, not measurement.
- No stated measurement distance. Honest specs say where the meter stood. A rating with no distance was usually taken inches from the horn, where every horn sounds heroic.
Where battery-powered air horns fit
Traditional 12V air horn kits with a tank and compressor are the real thing, but they demand wiring, relay work, and permanent mounting. Battery-powered train horns take the same real architecture — an onboard compressor pushing air through genuine metal trumpets — and run it off the cordless tool battery you already own. No wiring harness, no tank to plumb, no install day. Dual-trumpet models produce around 130 dB and quad-trumpet models around 140 dB — real air-horn numbers from something you can carry in one hand.
At the top of the range, the Extreme Series Train Horn for Milwaukee® 18v Battery pushes past 150 dB with long extreme trumpets, runs on any Milwaukee® M18™ pack, and fires from a wireless remote at up to 2,000 feet. That is locomotive-class output from a horn that never touches your truck's electrical system.
FAQ
Is an electric 12V "train horn" louder than my stock horn?
Somewhat, usually. Typical measured output is about 105–118 dB versus roughly 100–110 dB for factory horns. It is an upgrade in tone and a small step in volume — not the category jump the word "train" implies.
Can any electric horn really hit 150 dB?
No. The electromagnet-and-diaphragm mechanism tops out far below that, and the loudest independently measured horns near 150 dB are locomotive-grade air horns fed by serious compressed-air systems. An electric horn listing that says 150 dB is quoting a number the hardware cannot produce.
Is an aerosol can air horn the same as a real air horn?
It is technically air-powered — a can of pressurised gas blowing through a small plastic horn — but the air supply is tiny and runs out. We compared them head-to-head in our train horn vs aerosol can air horn guide.
Do real air-powered train horns require wiring?
Traditional 12V kits do: compressor wiring, a relay, and a tank mounted somewhere on the vehicle. Battery-powered train horns do not — the compressor, trumpets, and power source are one self-contained unit running on a cordless tool battery, so setup is clip-in-and-go.
